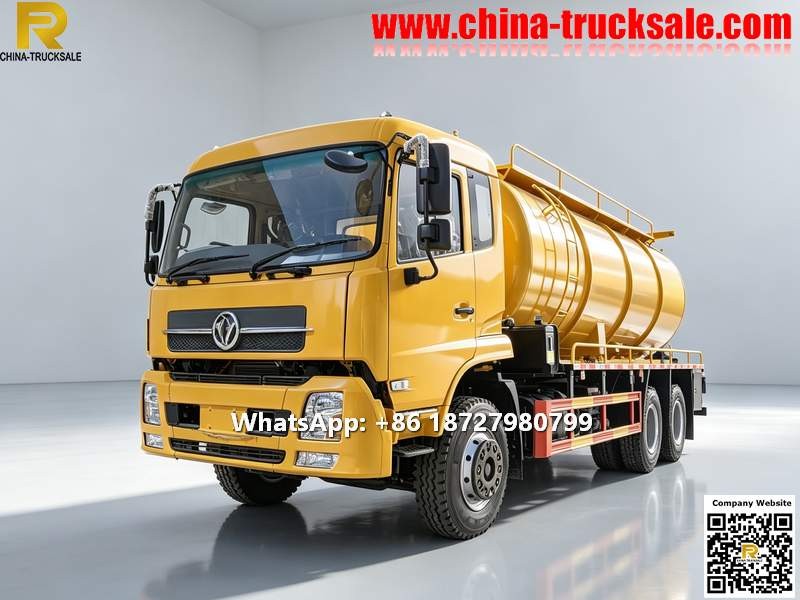

20000L Vacuum sewage truck

Sewage tank: 20000L

Engine: 260hp / 340HP optional

Tank hydraulic lifting: YES

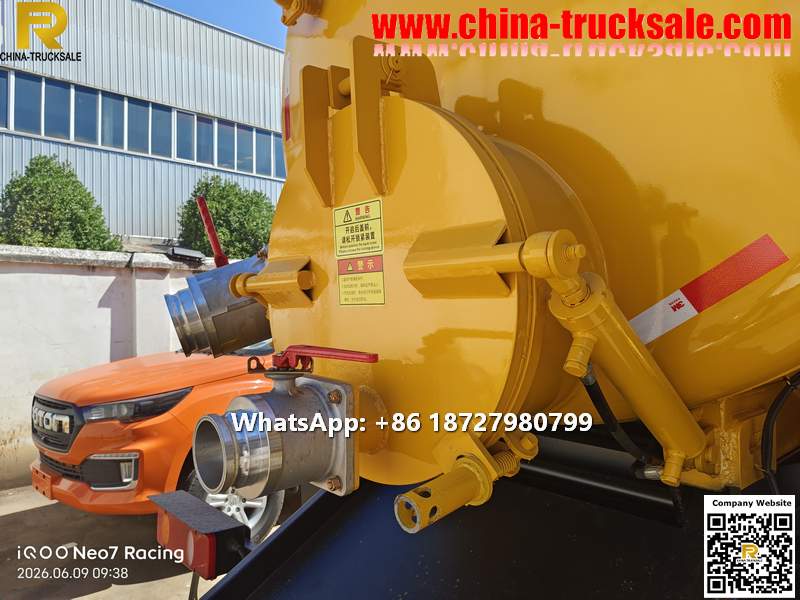

back cover: hydraulic open

Description

★★★★★Function And Introduction:

20000L Vacuum sewage suction truck (also called Vacuum truck, 20000L Vacuum truck, 20000L sewage truck, 20cbm Septic tank truck, Honey Suction truck，18000L Fecal Suction Truck, 20 Cubic meters septic tank truck, vacuum waste water collection truck, sewer vacuum truck, vacuum tanker, sewer cleaner truck, waste water vacuum truck, Sewer cleaner truck, sewage tanker truck, cesspit emptier, sewage disposal tanker, bully bowser, sewage tanker vehicle, Sewage suction truck ) is used to collect ,transport and discharge liquid such as dirty water,sludge ,septic,crude oil,and solid stuff such as stones,bricks as well.It is suitable for cleaning the sewer,cesspit,cesspool,gully ,etc. It is widely used in environment and sanitation filed.

1)The truck is equipped with high-powered vacuum suction pump and high-pressure cleaning device. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up,
2)the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum,large capacity, high efficiency and good seal
3) The truck can inhale silt, feces, small bricks, stones and so on. And this truck can be equipped with high pressure cleaning device, it can flushing clogged drains , cleaning the tank and rinse the road ,etc

★★★★★Our Service And Advantage :

1. we are professional special vehicle manufacturers , we can help our clients customize these trucks ,meeting the personalized requirements of different customers.
2. Types of truck: vacuum sewage suction tank truck, sewer jetting cleaning truck,Combine Canal Jetting & Vacuum Truck
3. The warranty period of all our products is one year ,and provide the instruction manual ,operating video and spare parts for lifetime.
4.we are cooperation with almost all the chassis suppliers ,so that our customer can choose the most suitable truck, Optional Brand: SINOTRUKHOWO,FOTON,FORLAND,ISUZU,NISSAN, JMC,JAC,DONGFENG, NORTH BENZ,C&C ,MERCEDES BENZ,FAW,FAC,IVECO,KAMA,SFC,etc
5. Use famous chassis ,through the ISO9001 ,CCC certification , quality assurance.

★★★★★Product Parameter:

Product Name: 3000L tank Parameter Table

Product Name: 20000L Vacuum sewage suction truck
Product Name	20000L Honey Sucking truck
Chassis brand	Optional others
Overall dimension	10000X2550X3850MM
Tank volume	20000L
GVW	25000kg
Kerb Weight	12500kg
Rated load	/

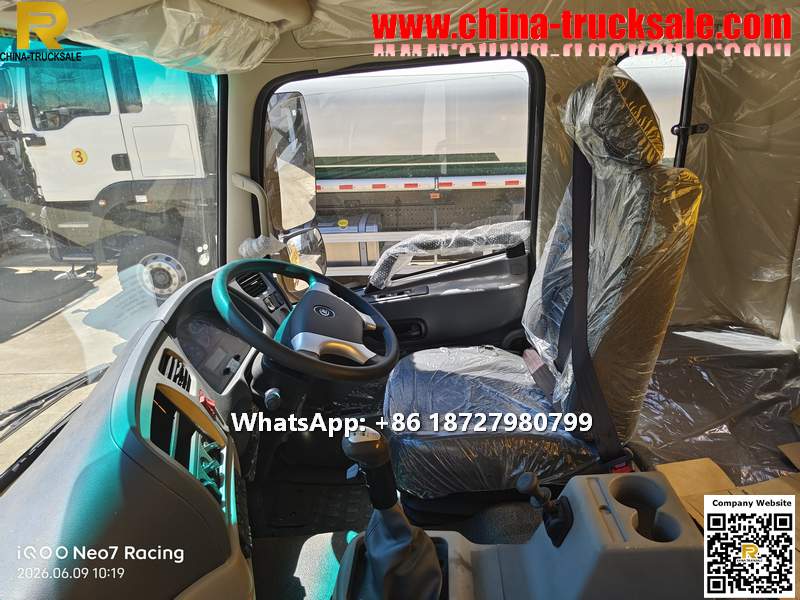

Cabin
Cab Capacity	2-3people
Air Conditioner	YES
Vehicle Color	Optional
Engine
Engine Type	6-Cylinder Diesel engine
Engine Brand	YUCHAI
Power/Displacement	340HP/7255CC
Engine Rated speed	2200rpm
Maximum torque/ Speed	1600N.M
Emission Standard	Euro 2
Engine configuration	Turbocharged engine, Water-cooled, four-stroke, Direct injection
Chassis
Drive Type	6X4
Transmission	10-SPEED
Wheelbase	4350+1300mm
Oil tank	300L
Number of axle	3
Axle load (F/R)	7.5T /13T / 13T
Tire Type specification	10.00R20
Tire Type Number	10 tires and 1spare tire
Max speed	90km/h
Tanker Tank
Tank volume	20000L tank
Tank thickness	Body 5 mm, front and rear dish 6 mm
Tipping	Hydraulic tipping with 45 degree at rear
Material	High quality carbon steel plate, anti-rust treatment

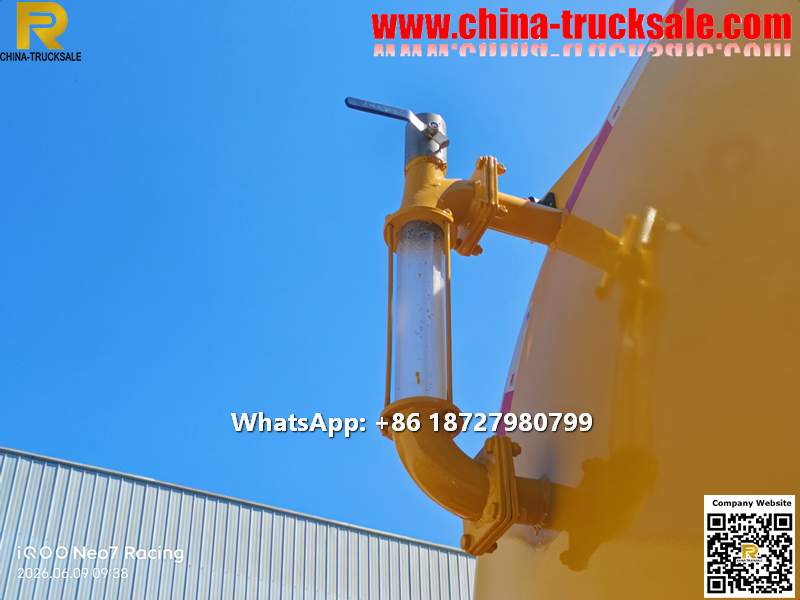

Liquid level indicator	Mounted at the rear of the tank
Suction pipe material	PVC spire strengthen hose
Suction depth	7m
Suction pipe diameter	100mm
Over pressure safety	Over pressure relief valve on the top of the tank
Sewage pump
Brand	Water circulation pump vacuum pump
PTO Drive	YES
Vacuum pump capacity	20000L/MIN
Working Pressure	-0.93BAR

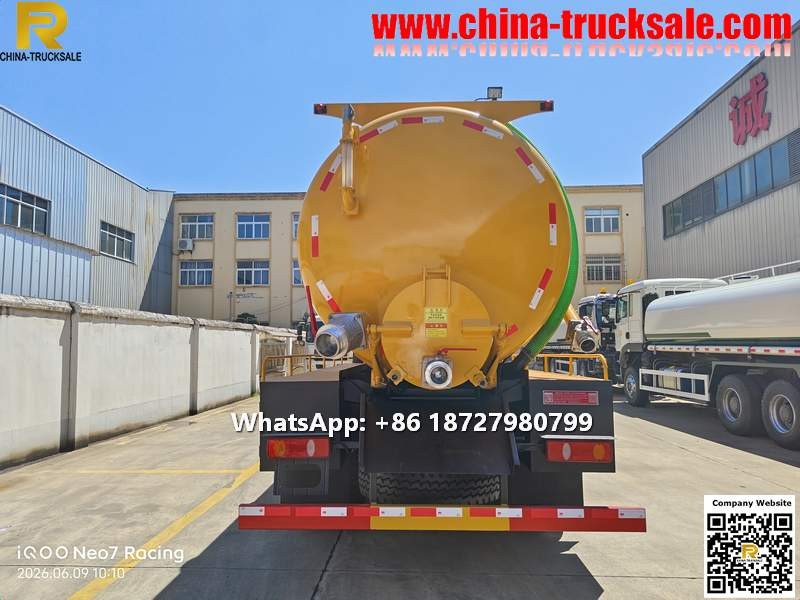

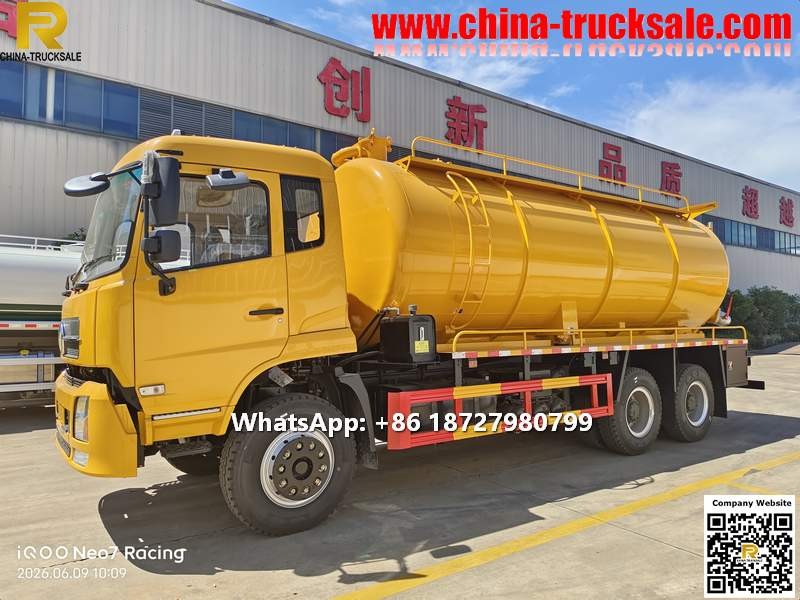

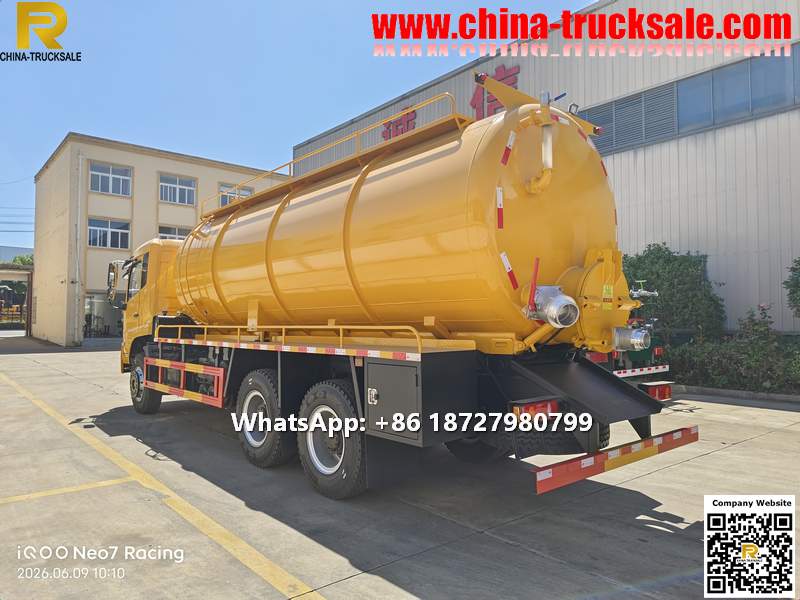

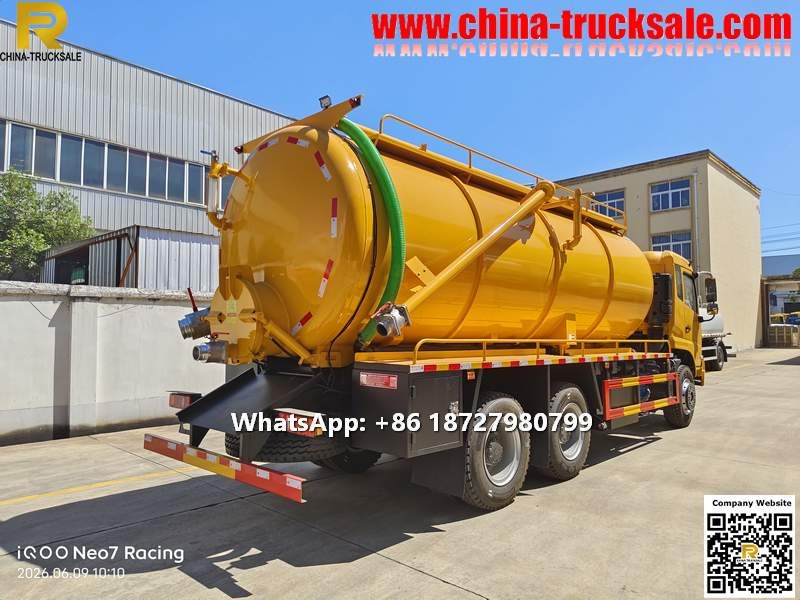

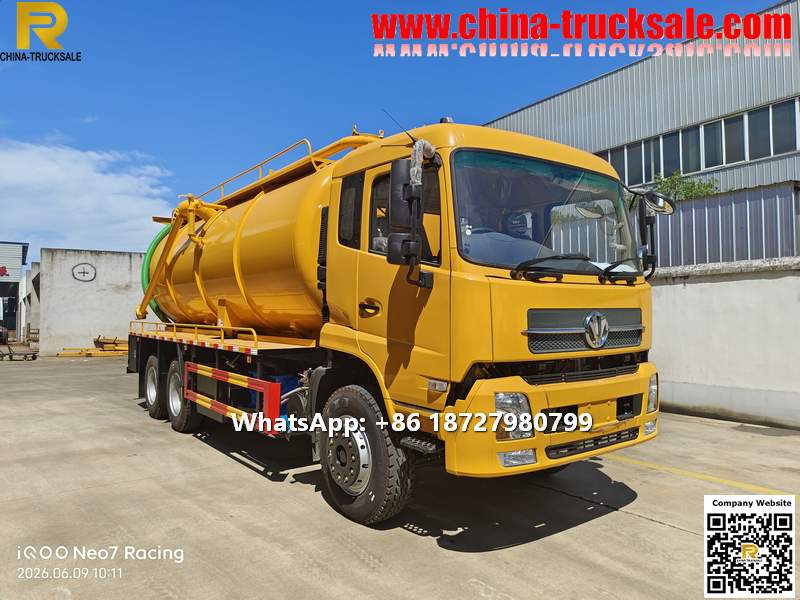

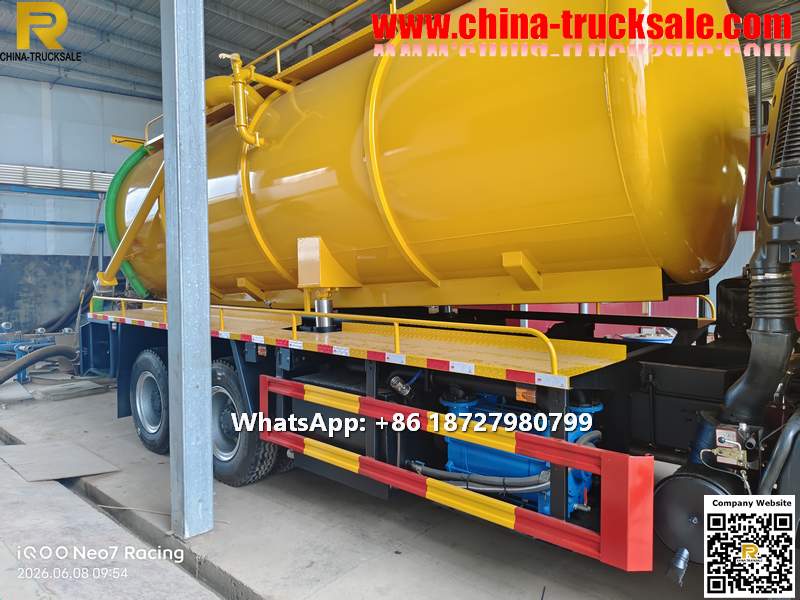

★★★★★Product Display :

★★★★★FAQ PARTS :
Q: How about Packaging?
A:In general , these trucks will be waxing before deliver to port ,and we can also package vehicles
according to your request.
Q: How about shipping ?
A:Big size trucks always shipping by RORO or bulk ship or flat bed container or open top container ,small type can shipping by container ,please contact us to get a shipping quotation.
Q:How about the warranty?
A: One year
Q: Do you have ISO certificate ?
A: Yes , we have ,please contact us to get our certifications.
Q: How about the delivery time ?
A: Most of our trucks are all have in stock ,we can delivery to you within 7 days ,if specially ordered ,we always need around 30 days for production.
Q: How about your product After-sales service system ?
A: Our main export country have accepted after-sales service, some of country used the third
department service.
Q: Do you accept Custom orders ? What's your MOQ order?
A: Yes,we do ,our MOQ is 1set.
Q: What's the payment terms ?
A: By T/T or L/C at sight.
Q: Which country do you have exported to ?
A: We have exported to many countries,such as Albania,Algeria,Angola,
Afghanistan, Congo,Cameroon,Chile,Cuba,Guinea,Indonesia,Iran,Iraq,Jamaica,Jordan,Kenya,
Kuwait,Kazakhstan,Uzbekistan,Tajikistan,Turkmenistan,Laos,Libya,Malaysia,Maldives,Mexico,
Morocco,Myanmar,Mongolia,New Zealand,Nigeria,Peru,Philippines,Qatar,Saudi Arabia,
Singapore,Sudan,South Sudan,Tanzania,Thailand,Togo, Tunisia,Venezuela,Zambia etc.
