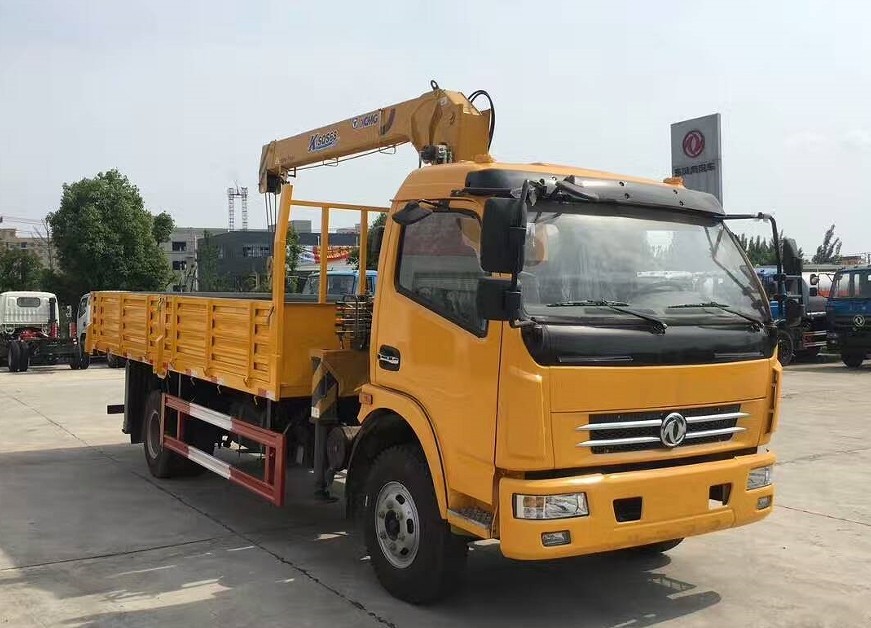

4X2 truck with straight boom crane 5tons

Vehicle model:HLQ5140SCD3

Rated load: 7-8tons

Engine: 160hp YUCHAI engine

Reinforced 8tons rear axle and leaf springs

Description

4X2 truck with straight boom crane 5tons (also called 5tons crane truck, Artculated boom crane,Truck loader crane, 4tons Crane truck, Folding boom truck mounted crane,Hydraulic truck crane,Self loader truck with crane,Straight boom Crane truck,Truck Mounted Crane, 3tons crane truck, lorry mounted crane, knuckle boom crane trucks, mobile crane trucks, telescopic bomm crane truck,etc) is used to lift the cargo,load ,transport and unload heavy stuff.

Telescopic straight boom crane: 2ton,3.2ton,4ton,5ton,6.3ton,8ton,10ton,12ton, 14ton, 16ton,20ton

Knuckle folding boom crane: 1ton ,2ton,3.2ton,4ton,5ton,6.3ton,8ton ,10ton,12ton, 14ton,16ton,20tons ,25ton,30ton,35ton,40ton ,45ton,50tons,55tons,90tons, 130tons,160tons

The truck consists of chassis, box, power take-off and crane, achieving cargo lifting and moving through hydraulic lifting and telescopic system.and can be installed the customized mechanical gripper to grab the heavy brick and wood ,or the basket to send the people to the higher place, multiple functions.

In general, H-type outrigger is equipped to realize its stability. To be further strengthened stability of the truck, rear outrigger also can be equipped if the customer require. The crane can 360 degree continuously rotate.

★★★★★Our Service And Advantage :
1. we are professional special vehicle manufacturers , we can help our clients customize these trucks ,meeting the personalized requirements of different customers.
2. we can provide all kinds of brand crane ,such as XCMG ,SANY, SHIMEI, HYX, CX etc.Different quality ,different price.
3. The warranty period of all our products is one year ,and provide spare parts for lifetime.
4.we are cooperation with almost all the chassis suppliers ,such as SINOTRUK HOWO, FOTON,FORLAND,ISUZU, NISSAN, JMC,JAC,DONGFENG, NORTH BENZ,C&C ,MERCEDES BENZ,FAW,FAC,IVECO,KAMA,SFC,etc

5. Use famous chassis ,through the ISO9001 ,CCC certification , quality assurance.

★★★★★Product Parameter:

Basic Information
Outline size(L×W×H) (mm)	760023003650	Cargo Body size(L×W×H) (mm)：	45002200550
Rated load(kg)	8000	Empty mass(Kg)：	6500
GVW (kg)	14500	Emission Standard	Euro 2
Engine Information
Power/displacement	160hp/4580CC	Manufacture		Diesel engine
Number of cylinders	4	Emission standard:		Euro 2
Cylinder arrangement	Inline 4-cylinder	Rated speed:		2600rpm
Maximum torque:	550N.M	Maximum torque speed:		1300-1600rpm
Compression ratio:	17：01	Bore X Stroke		102x120mm
Chassis Information
Wheelbase(mm)：	3800	Tire			8.25R20
Front suspension(mm)	1130	Rear suspension(mm)			1770
Front track(mm)	1880	Rear track(mm)			1630
Approach angel(°)	21	Departure angle(°)			13
Steering	Power steering	Brake			Air brake
Cabin	Single row 2 doors, 3 seats，with air-condition
Special function
Crane capacity(KG)	5000KG 4 booms with 2 supporting legs	Max Working radius			9.6m
Max Lift height(m)	11.5m	Rotation angle			360°
Trade terms
Payment terms	50% by T/T in advance, 50% by T/T before delivery
MOQ	1set
Package	waxing

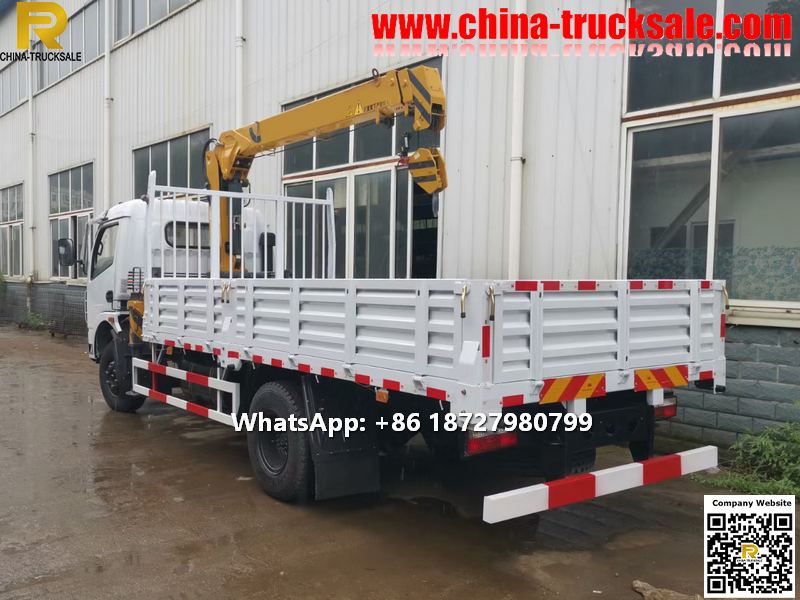

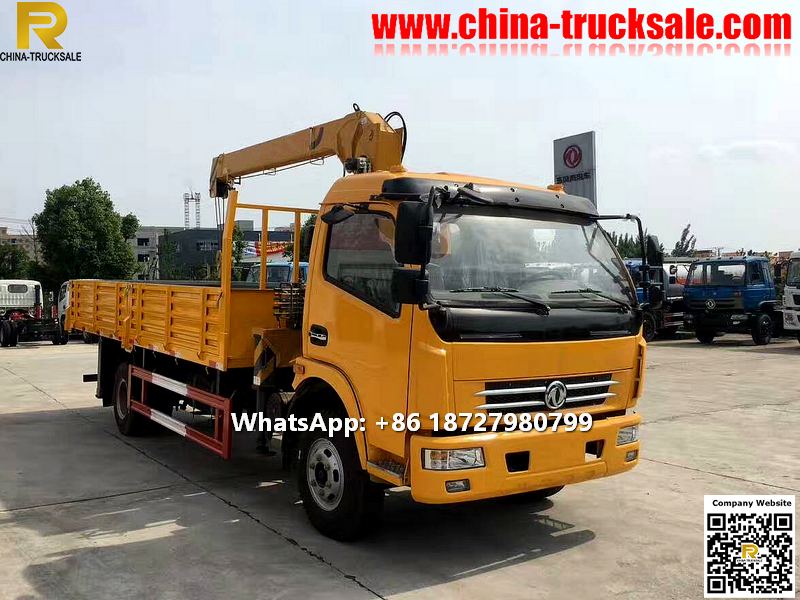

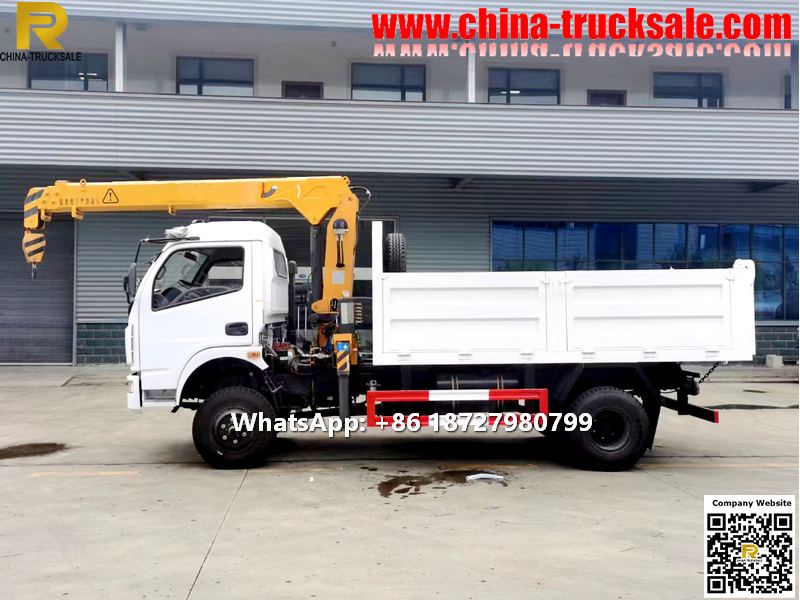

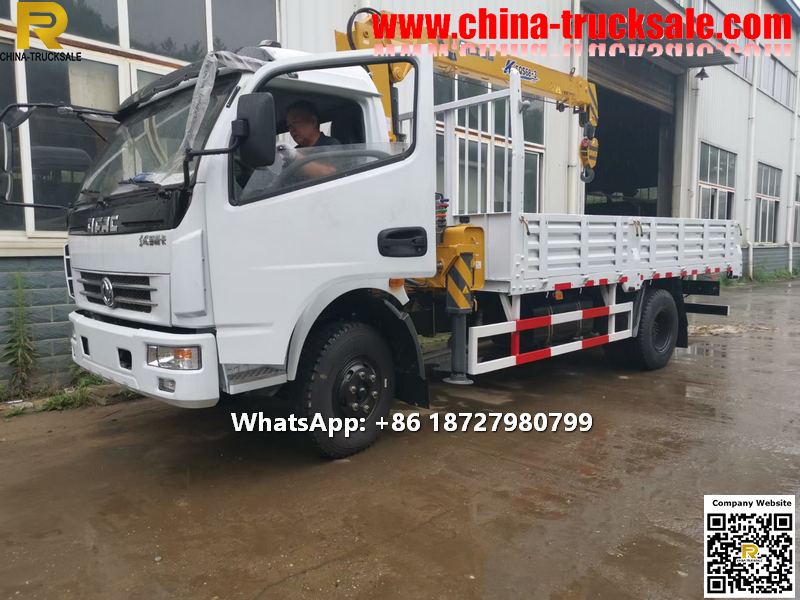

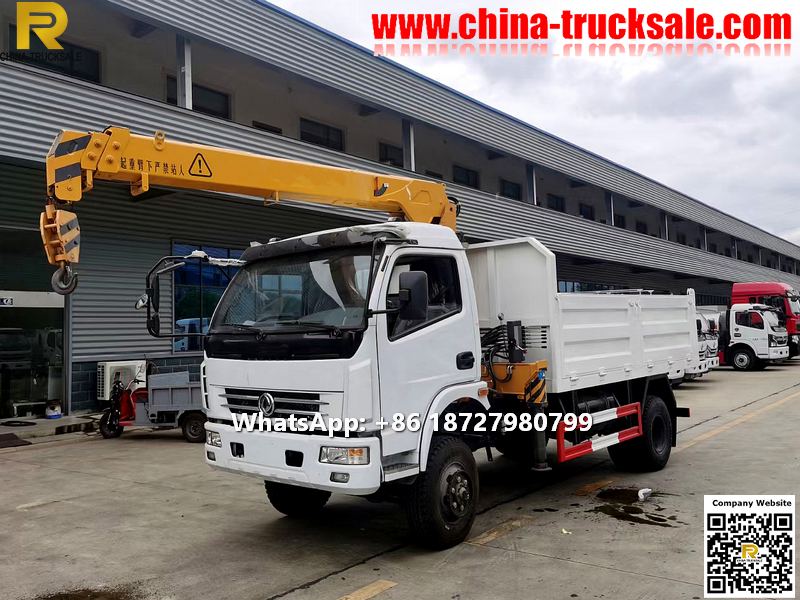

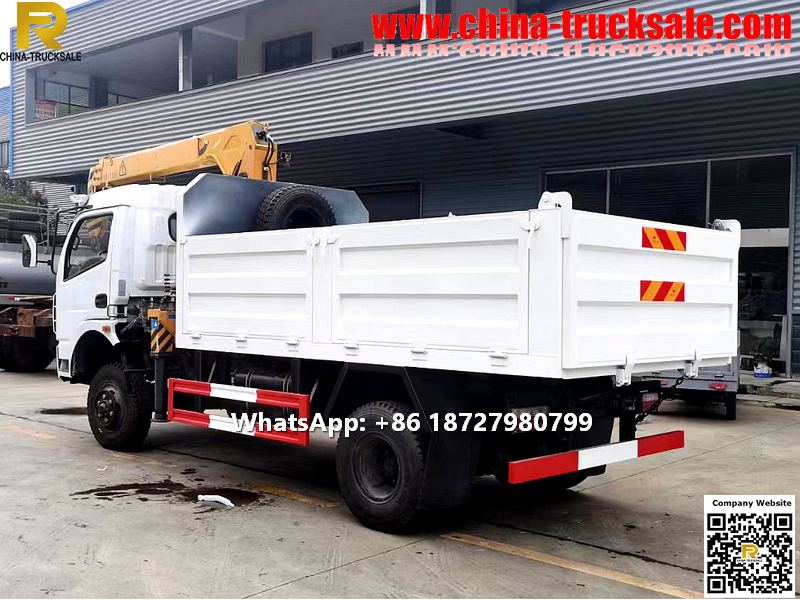

★★★★★Product Display :

★★★★★FAQ PARTS :
Q: How about Packaging?
A:In general , these trucks will be waxing before deliver to port ,and we can also package vehicles
according to your request.
Q: How about shipping ?
A:Big size trucks always shipping by RORO or bulk ship or flat bed container or open top container ,small type can shipping by container ,please contact us to get a shipping quotation.
Q:How about the warranty?
A: One year
Q: Do you have ISO certificate ?
A: Yes , we have ,please contact us to get our certifications.
Q: How about the delivery time ?
A: Most of our trucks are all have in stock ,we can delivery to you within 7 days ,if specially ordered ,we always need around 30 days for production.
Q: How about your product After-sales service system ?
A: Our main export country have accepted after-sales service, some of country used the third
department service.
Q: Do you accept Custom orders ? What's your MOQ order?
A: Yes,we do ,our MOQ is 1set.
Q: What's the payment terms ?
A: By T/T or L/C at sight.
Q: Which country do you have exported to ?
A: We have exported to many countries,such as Albania,Algeria,Angola,
Afghanistan, Congo,Cameroon,Chile,Cuba,Guinea,Indonesia,Iran,Iraq,Jamaica,Jordan,Kenya,
Kuwait,Kazakhstan,Uzbekistan,Tajikistan,Turkmenistan,Laos,Libya,Malaysia,Maldives,Mexico,
Morocco,Myanmar,Mongolia,New Zealand,Nigeria,Peru,Philippines,Qatar,Saudi Arabia,
Singapore,Sudan,South Sudan,Tanzania,Thailand,Togo, Tunisia,Venezuela,Zambia etc.
