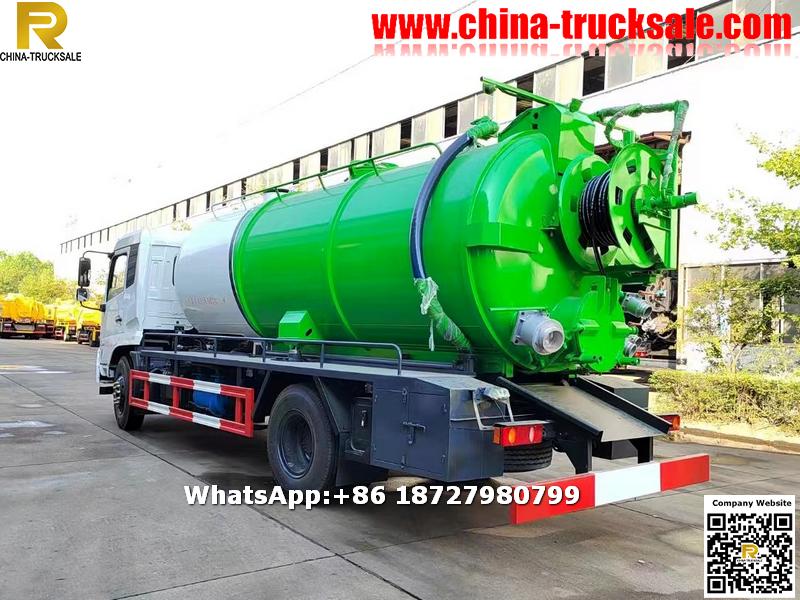

8000L combined jetting vacuum sewage truck

Vehicle Model: HLQ5180GQWE3

chassis model: DFL1180B2

combined jetting vacuum sewage truck

4000L sewage tank+4000L clean water tank

Description

★★★★★Function And Introduction:

8000L combined jetting vacuum sewage truck (also called Vacuum sewage truck, Jetting vacuum truck, combined jetting vacuum sewage truck, Sewer unclogging truck, combined vacuum sewage suction jet truck, Combined jet vacuum truck, Jetting vacuum truck, septic suction truck, sewage vacuum tank truck, sewer cleaning truck, sewage tanker, sewer truck, cesspit emptier, gully emptier, vacuum tanker sewage truck ) is used to collect ,transport and discharge liquid such as dirty water,sludge ,septic,crude oil, and solid stuff such as stones,bricks as well.It is suitable for cleaning the sewer,cesspit,cesspool,gully,etc.It is widely used in environment and sanitation filed.

1)The sewage truck is equipped with high-powered vacuum suction pump and high-pressure cleaning device. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up.
2)the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum,large capacity, high efficiency and good seal
3) The Combined sewer jetting sewage truck can inhale silt, feces, small bricks, stones and so on. And this truck can be equipped with high pressure cleaning device, it can flushing clogged drains , cleaning the tank and rinse the road ,etc

★★★★★Our Service And Advantage :

1. we are professional special vehicle manufacturers , we can help our clients customize these trucks ,meeting the personalized requirements of different customers.
2. Types of truck: vacuum sewage suction tank truck, sewer jetting cleaning truck,Combine Canal Jetting & Vacuum Truck
3. The warranty period of all our products is one year ,and provide the instruction manual ,operating video and spare parts for lifetime.
4.we are cooperation with almost all the chassis suppliers ,so that our customer can choose the most suitable truck, Optional Brand: SINOTRUKHOWO,FOTON,FORLAND,ISUZU,NISSAN, JMC,JAC,DONGFENG, NORTH BENZ,C&C ,MERCEDES BENZ,FAW,FAC,IVECO,KAMA,SFC,etc
5. Use famous chassis ,through the ISO9001 ,CCC certification , quality assurance.

★★★★★Product Parameter:

Basic Information
Chassis Model		DFL1180B2		Vehicle model			HLQ5180GQWE3
Outline size(L×W×H) (mm)		820025003500		Tank volume：			4000L+4000L
Rated load (kg)		/		Curb weight Kg)：			8750
GVW(kg)		18000		Emission standard			Euro 3
Engine Information
Model		B190 33		Type		Diesel engine
Power/displacement(KW/ML)		190HP/5900ML		Manufacture		CUMMINS engine
Chassis Information
Wheelbase(mm)：		4500			Axle load(kg) F/M/R	6500/11500
Tire		295/80R22.5			Max speed (km/h)	100
Front suspension(mm)		1250			Rear suspension(mm)	2250
Front track(mm)		1960			Rear track(mm)	1855
Approach angel(°)		15			Departure angle(°)	20
Steering		Power steering			Brake	Air brake
Cabin		Straight head ,single row ,3 persons with A/C
Special function
Sewage Tank capacity(m³)	4000L		Tank Material					Carbon steel
Pumping air rate	7000L/min		WORK PRESSURE					-0.093mpa
Rotate speed	950r/min		Soak pipe					8PCS (3MX8)

Clean water tank capacity	4000L		Tank Material					Carbon steel
Flow:	170L/min		pressure					160bar
Sewage tank configuration
1) The truck is equipped with strong durability double vacuum pump and high quality hydraulic system. The hydraulically opened back cover facilitates the discharge of sewage feces and tank cleaning ,and double cylinders on both sides of the truck can realize the tank lifting to dump sewage. 2)Characterized by high vacuum,large capacity, high efficiency and good seal 3) The truck can inhale silt, feces, small bricks, stones and so on
High-pressure cleaning configuration
High pressure cleaning function Equipped German PINFL high pressure pump and 80M automatic returnable high pressure pipe, full power sandwich extractor and a set of 10 high-pressure nozzle. These 10 nozzles can be used with 60 meters of high pressure water pipe to unclog the sewer and cleaning the inside of the tank by high pressure water.
Electronic Devices: All electronic devices installed according to GB/T 19001-2016/ISO 9001:2015 standard, electrical cables insulated, 1 unit amber color rotating beacon on top of driver's cab and rear of vehicle, 1 unit 100Va Working light on the back of the hood for night work
