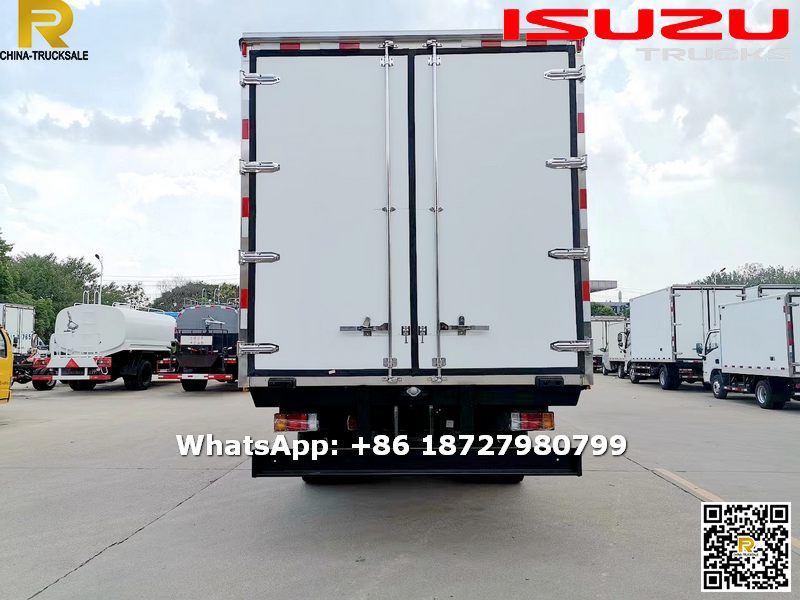

ISUZU 10-15TONS fish freezer van truck

Description

ISUZU 10-15TONS fish freezer van truck(also called refrigerator box truck, refrigerator wagon,freezer vehicle, temperature controlled truck,Freezer vehicle, ISUZU Refrigerated trucks, Cold chain transport truck，Freezer cargo truck, Transport Freezer Van, Ice Cream truck, Mobile Freezer van ,Refrigerator van Truck,preservation vehicle)is used to carry perishable stuff at specific temperature, widely used to transport fish, meat, ice cream, fruit, vegetable and medicine, etc

The cooling device could be of famous brand such as Carrier,THERMO KING...

Optional Left hand drive or Right hand drive trucks

We use high quality van body for temperature reservation.The box surface material could be fiberglass,aluminum or stainless steel. The padding material is polyurethane foam that had super temperature preservation ability with varieties of thickness options.

★★★★★Product Parameter:

Total weight(Kg)	18000
Rated weight(Kg)	10-15 TON
Curb weight(Kg)	7880
Overall dimension(mm)	900025003900
Carriage dimensions (mm)	660023002500
Chassis model	QL1180A3KAY
Fuel type	diesel engine
Emission standard	Euro5
Engine model	4KH1-TC51
Manufacturer	ISUZU ENGINE
Power/Displacement	190HP/5193cc
Rated person of Cab	3
Number of axles	2
Wheelbase(mm)	4700/5000
Tires No.	6
Tyre size	10.00R20
Max. speed(Km/h)	95
Approach/Departure angle (°)	24/16
Front/Rear overhang (mm)	1400/2300
Front/Rear track(mm)	1860/1800
Detailed Configuration:	1. -15°C good refrigerator units ,You can also choose the specific brand (such as THERMO KING, CARRIER,etc) 2. 800mm thickness Glass fiber reinforced plastics and polyurethane elastomer container body, thermal insulation effect is very good. 3. Equipped with rear door . We are professional to do the refrigerator trucks, absolutely guarantee the quality of products and the effect of cold storage .
Optional configuration :	1.Optional sigle side door and double side door 2.Hydraulic tail lifting platform, it will make it easier for you to load the goods(see the picture 5)

★★★★★Product Display:

★★★★★FAQ PARTS :
Q: How about Packaging?
A:In general , these trucks will be waxing before deliver to port ,and we can also package vehicles
according to your request.
Q: How about shipping ?
A:Big size trucks always shipping by RORO or bulk ship or flat bed container or open top container ,small type can shipping by container ,please contact us to get a shipping quotation.
Q:How about the warranty?
A: One year
Q: Do you have ISO certificate ?
A: Yes , we have ,please contact us to get our certifications.
Q: How about the delivery time ?
A: Most of our trucks are all have in stock ,we can delivery to you within 7 days ,if specially ordered ,we always need around 30 days for production.
Q: How about your product After-sales service system ?
A: Our main export country have accepted after-sales service, some of country used the third
department service.
Q: Do you accept Custom orders ? What's your MOQ order?
A: Yes,we do ,our MOQ is 1set.
Q: What's the payment terms ?
A: By T/T or L/C at sight.
Q: Which country do you have exported to ?
A: We have exported to many countries,such as Albania,Algeria,Angola,
Afghanistan, Congo,Cameroon,Chile,Cuba,Guinea,Indonesia,Iran,Iraq,Jamaica,Jordan,Kenya,
Kuwait,Kazakhstan,Uzbekistan,Tajikistan,Turkmenistan,Laos,Libya,Malaysia,Maldives,Mexico,
Morocco,Myanmar,Mongolia,New Zealand,Nigeria,Peru,Philippines,Qatar,Saudi Arabia,
Singapore,Sudan,,South Sudan,Tanzania,Thailand,Togo, Tunisia,Venezuela,Zambia etc.
