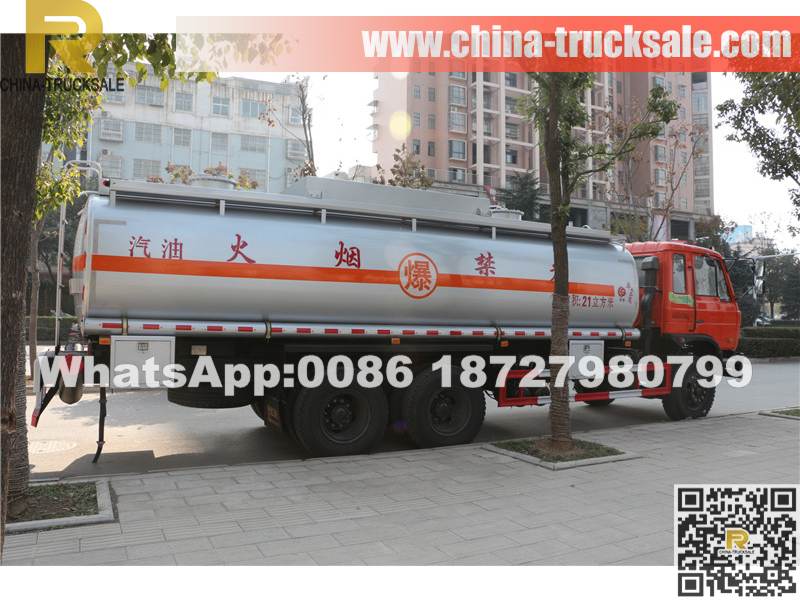

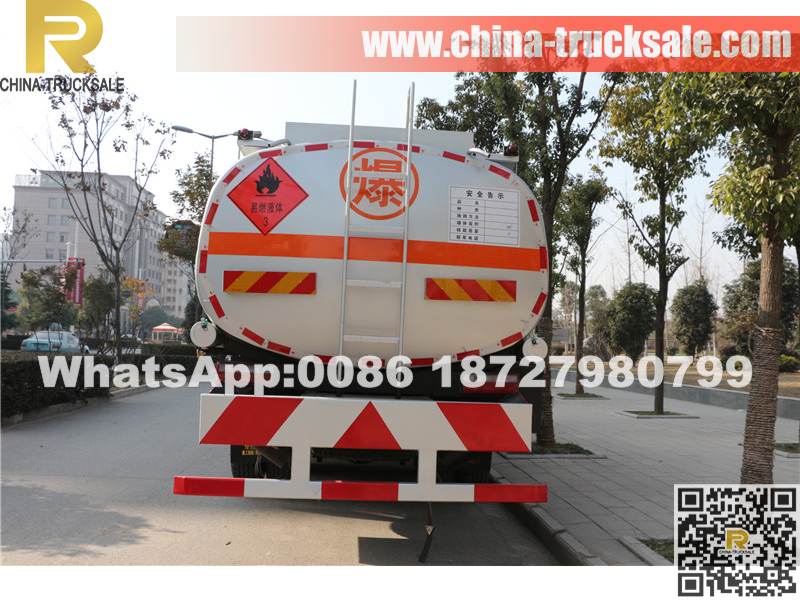

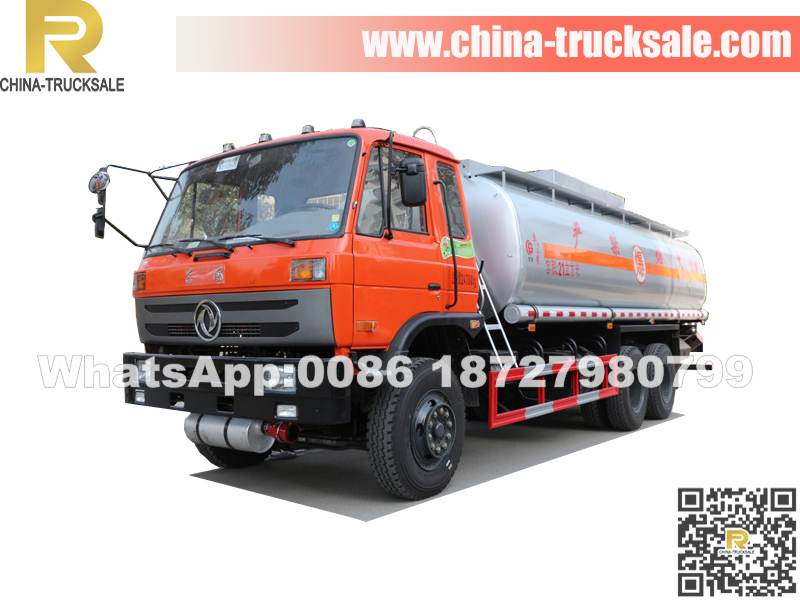

Recommended daily-cheap 20000L oil transport truck

date:2021-06-25

---------------------------------------------------------------

------------------------------------------------

1. Optional color , LOGO ,Optional LHD/RHD truck , customized Production

2. Use DonFeng chassis, good quality and performance !

3. Equipped with CUMMINS 210HP / YUCHAI 240HP engine, super powerful !

4. European standard inlet manhole, sea inlet valve, Two branch warehouse, oil pump

5. Optional large flow refuelling machine.

6. Optional 304 stainless steel or aluminium alloy tank.

------------------------------------------------

Basic Information
Outline size(L×W×H) (mm)		1000025003500		Tank capacity:		20000L
Rated load(kg)		/		GVW(Kg)：		31000
Curb weight(kg)		12800		Emission standard		Euro 3
Engine Information
Power			240HP	Manufacture		Diesel engine
Chassis Information
Wheelbase(mm)：			4350+1350	Axle load(kg) F/R		7000/12000 /12000
Tire			10.00-20	Max speed (km/h)：		90
Front overhang(mm)			1460	Rear overhang(mm)		2790
Front track(mm)			1880	Rear track(mm)		1800
Approach angel(°)			20	Departure angle(°)		12
Steering			Power steering	Brake		Air brake
Cabin			1 rows 2 doors ,allowable 3 persons with Air-condition
Special function
Container capacity			20000L		Tank material:		Carbon steel
Configuration			Use Q235 carbon steel ,Aluminum alloy manhole cover,Aluminium alloy seabed valve,oil pump, work bag
Optional configuration			1. Optional On-board refueling equipment : add $1000 2. Optional Lower loading device : add $ 900
Trade terms
Payment terms	After sign contract, 30% T/T in advance, the remaining 70% T/T payment before shipment.
Package	Waxing before delivery
